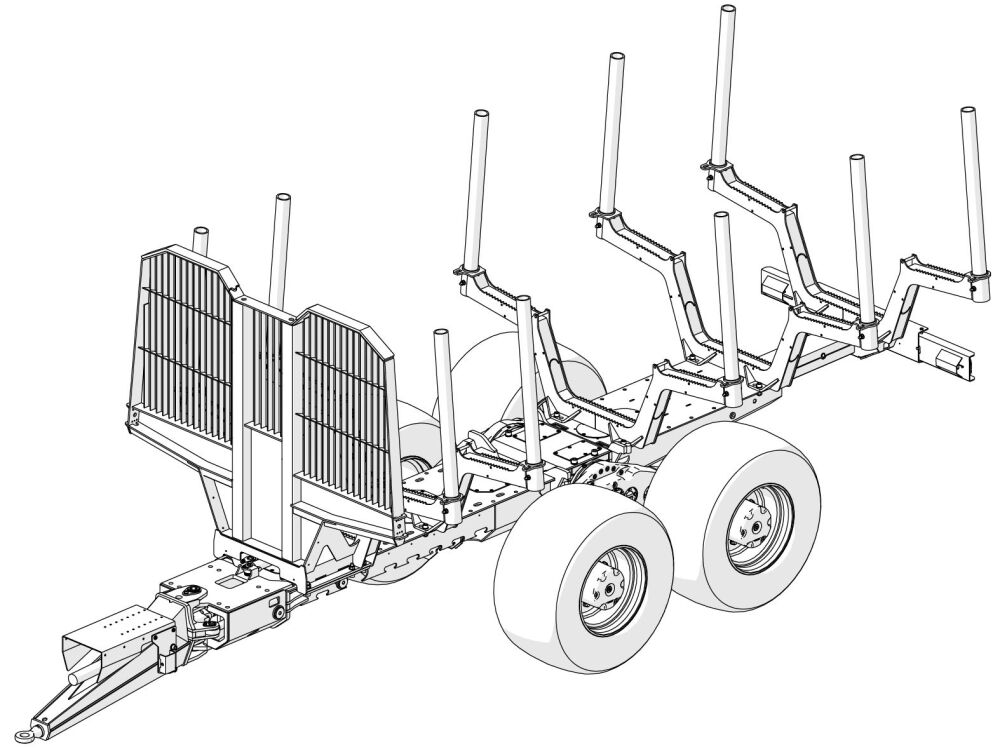

Experience forwarder-like performance with PALMS MWD series unibody trailers designed to conquer the toughest terrains. All mechanical transmissions of MWD trailers will be customized for each customer's tractor.
Loading area cross section, m2 | 3,2 |
Loading area length, mm | 4235 |
Frame extension length, m | 1,085 |
Gross weight, kg | 18000 |
Curb weight (without options) kg | 4700 |
Total length, mm | 6430 |
Width with standard wheels | 2470 |
Standard wheel size | 600/50x22,5 |
Frame | unibody |
Max crane size by lifting torque kNm | 120 |
Drawbar control cylinders standard/(optional), pcs | 2 |
Frame type | Unibody (Forwarder) |
Recommended cranes | PALMS 7.86 PALMS 7.94 PALMS X100 |
See also | WHEELS - WH Y TYPE DRAWBAR - CY FORWARDER TYPE HYDRAULIC BUNK EXTENSION - PA-H |
