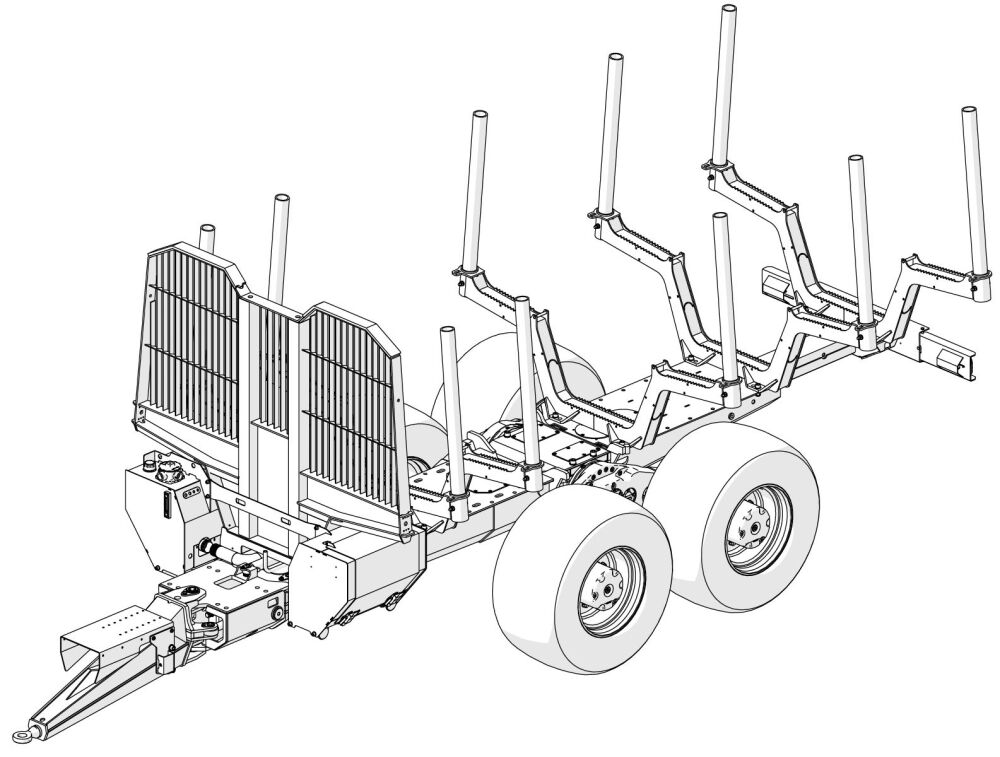

Experience forwarder-like performance with PALMS hydromechanical unibody trailers designed to conquer the toughest terrains. Hydromechanical 4x4 system is compatible to all suitable sized tractors with PTO.

Loading area cross section, m2 3,2
Loading area length, mm 4185
Frame extension length, m 1,085
Gross weight, kg 18000
Curb weight (without options) kg 4920
Total length, mm 6430
Width with standard wheels 2470
Standard wheel size 600/50x22,5
Frame unibody
Max crane size by lifting torque kNm 120
Drawbar control cylinders standard/(optional), pcs 2
Frame type Unibody (Forwarder)
Recommended cranes
