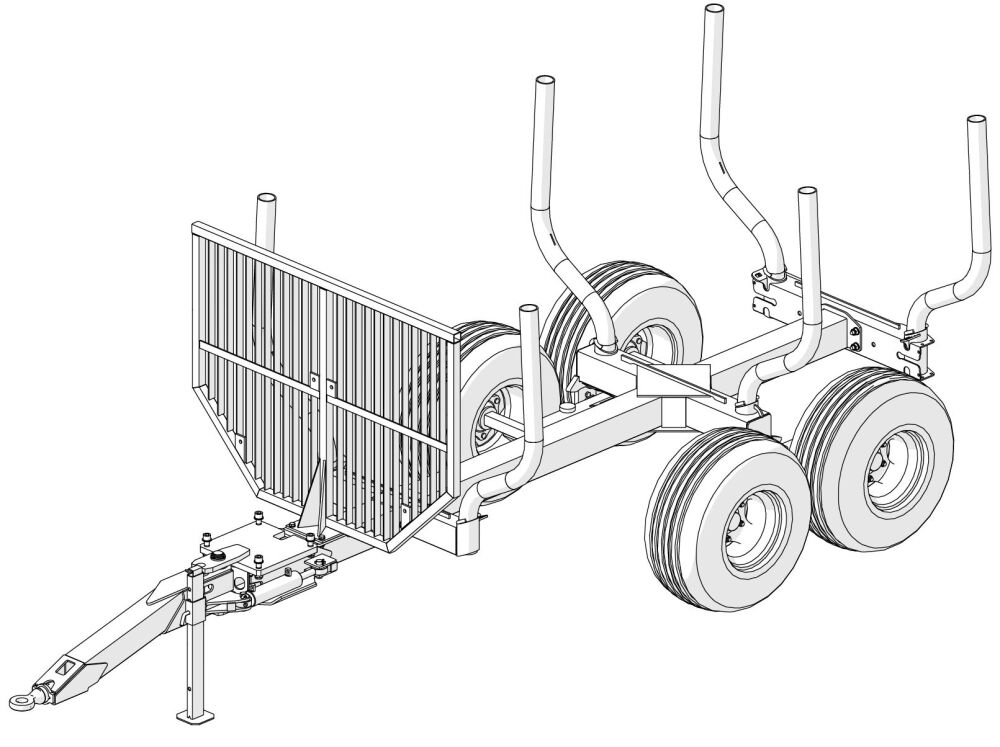

Single beam trailer with 8 000 kg nominal loading capacity.
Loading area cross section, m2 | 2 |
Loading area length, mm | 3550 |
Frame extension length, m | 0,61 |
Gross weight, kg | 10000 |
Curb weight (without options) kg | 1180 |
Total length, mm | 5690 |
Width with standard wheels | 2070 |
Standard wheel size | 400/60-15,5 |
Frame | 160x160x8 |
Max crane size by lifting torque kNm | 47 |
Drawbar control cylinders standard/(optional), pcs | 2 |
Frame type | Single beam |
Recommended cranes | PALMS 3.67 |
See also | WHEELS - WH PLATFORM ON DRAWBAR - D1 |
