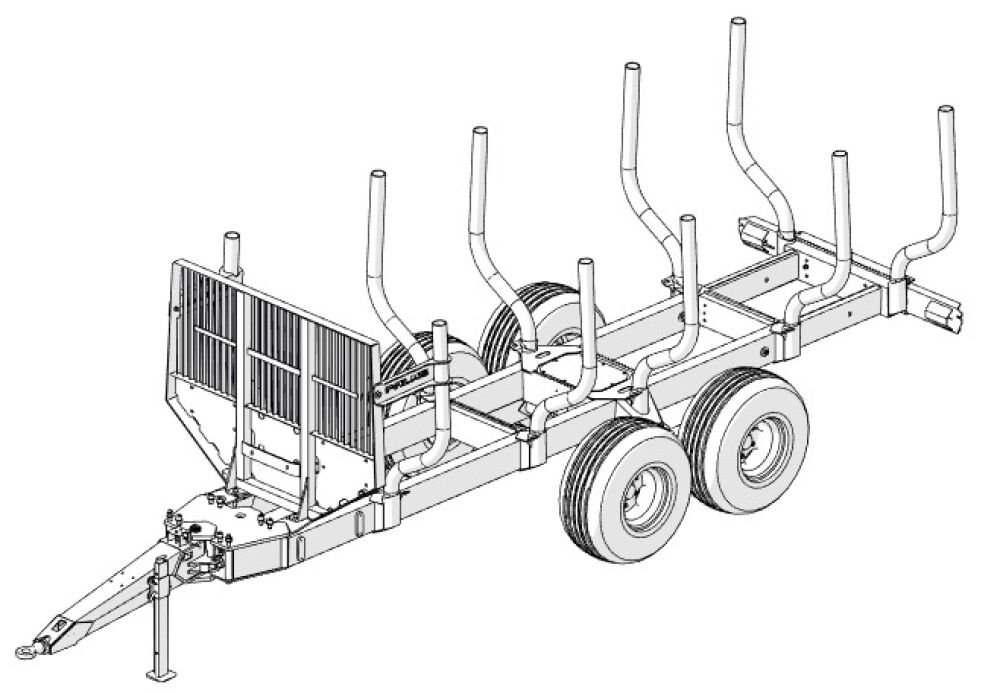

Double beam trailer with 8 000 kg nominal loading capacity.
Loading area cross section, m2 | 1,95 |
Loading area length, mm | 3975 |
Frame extension length, m | 0,85 |
Gross weight, kg | 10000 |
Curb weight (without options) kg | 1510 |
Total length, mm | 6200 |
Width with standard wheels | 2095 |
Standard wheel size | 400/60-15,5 |
Frame | 2x200x100x8 |
Max crane size by lifting torque kNm | 85 |
Drawbar control cylinders standard/(optional), pcs | 2 |
Frame type | Double beam |
Recommended cranes | PALMS 4.71 |
See also | WHEELS - WH CHAINSAW ATTACHMENT - MSH BIOMASS BOX - BBOX |
