Combination of high workmanship & durability.
Loading area cross section, m2:
0,6
Loading area length, mm:
2450
Gross weight, kg:
1500
Total length, mm:
3865
Loading area cross section, m2:
1,5
Loading area length, mm:
3000
Gross weight, kg:
8500
Total length, mm:
5125
Loading area cross section, m2:
2
Loading area length, mm:
3550
Gross weight, kg:
10000
Total length, mm:
5690
Loading area cross section, m2:
2,0
Loading area length, mm:
3680
Gross weight, kg:
10000
Total length, mm:
5780
Loading area cross section, m2:
2,15
Loading area length, mm:
3870
Gross weight, kg:
12000
Total length, mm:
6095
Loading area cross section, m2:
2,4
Loading area length, mm:
3975
Gross weight, kg:
13000
Total length, mm:
6200
Loading area cross section, m2:
2,4
Loading area length, mm:
3990
Gross weight, kg:
15000
Total length, mm:
6215
Loading area cross section, m2:
2,7
Loading area length, mm:
3975
Gross weight, kg:
15000
Total length, mm:
6200
Loading area cross section, m2:
2,75
Loading area length, mm:
3990
Gross weight, kg:
17000
Total length, mm:
6215
Loading area cross section, m2:
3,0
Loading area length, mm:
4080
Gross weight, kg:
18000
Total length, mm:
6300
Loading area cross section, m2:
3,2
Loading area length, mm:
4175
Gross weight, kg:
19000
Total length, mm:
6415
Loading area cross section, m2:
3,2
Loading area length, mm:
4235
Gross weight, kg:
18000
Total length, mm:
6430
Loading area cross section, m2:
3,2
Loading area length, mm:
4185
Gross weight, kg:
18000
Total length, mm:
6430

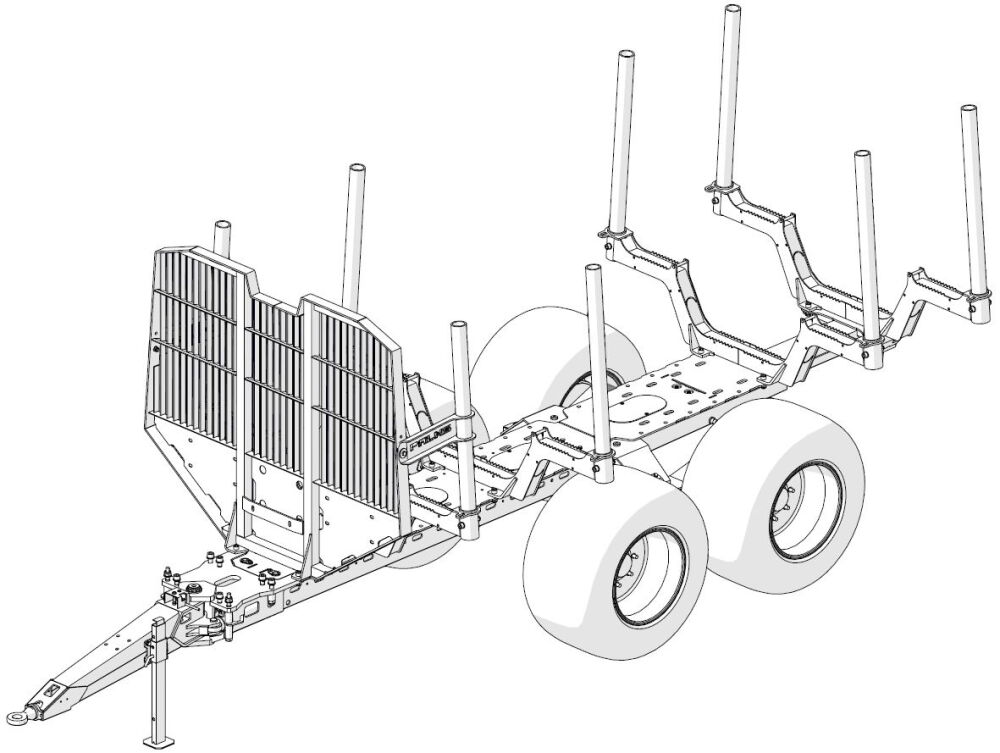

Trailers |
PALMS 2D | PALMS 6S | PALMS 8SX | PALMS 8D | PALMS 9SC | PALMS 10D | PALMS 10U | PALMS 12D | PALMS 12U | PALMS 14D | PALMS 15U | PALMS MWD 3.2 | PALMS HMWD 3.2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Loading area cross section, m2 | 0,6 | 1,5 | 2 | 2,0 | 2,15 | 2,4 | 2,4 | 2,7 | 2,75 | 3,0 | 3,2 | 3,2 | 3,2 |
| Loading area length, mm | 2450 | 3000 | 3550 | 3680 | 3870 | 3975 | 3990 | 3975 | 3990 | 4080 | 4175 | 4235 | 4185 |
| Frame extension length, m | - | - | 0,535 | 0,535 | 0,70 | 0.85 | 1,085 | 0,85 | 1,085 | 0,86 | 1,085 | 1,085 | 1,085 |
| Gross weight, kg | 1500 | 8500 | 10000 | 10000 | 12000 | 13000 | 15000 | 15000 | 17000 | 18000 | 19000 | 18000 | 18000 |
| Curb weight (without options), kg | 260 | 890 | 1180 | 1350 | 1425 | 1765 | 2170 | 2030 | 2270 | 2375 | 2545 | 4700 | 4920 |
| Total length, mm | 3865 | 5125 | 5690 | 5780 | 6095 | 6200 | 6215 | 6200 | 6215 | 6300 | 6415 | 6430 | 6430 |
| Width with standard wheels | 1285 | 1950 | 2070 | 2050 | 2135 | 2165 | 2245 | 2350 | 2245 | 2450 | 2450 | 2470 | 2470 |
| Standard wheel size | 22/11-8 | 400/60-15,5 | 400/60-15,5 | 400/60-15,5 | 400/60-15,5 | 400/60-15,5 | 500/50-17 | 500/50-17 | 500/50-22,5 | 500/50-17 | 500/50-22,5 | 600/50x22,5 | 600/50x22,5 |
| Max crane size by lifting torque, kNm | 12 | 35 | 58 | 65 | 65 | 85 | 90 | 85 | 120 | 112 | 120 | 120 | 120 |
| Drawbar control cylinders standard/(optional), pcs | 1 | 1(0) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Frame type | Double beam | Single beam | Single beam | Double beam | Single beam | Double beam | Unibody (Forwarder) | Double beam | Unibody (Forwarder) | Double beam | Unibody (Forwarder) | Unibody (Forwarder) | Unibody (Forwarder) |
| Frame | - | 140x140x6 | 160x160x8 | 2x160x80x8 | 200x200x6 | 2x200x100x8 | unibody | 2x200x100x8 | unibody | 2x200x120x8 | unibody | unibody | unibody |
