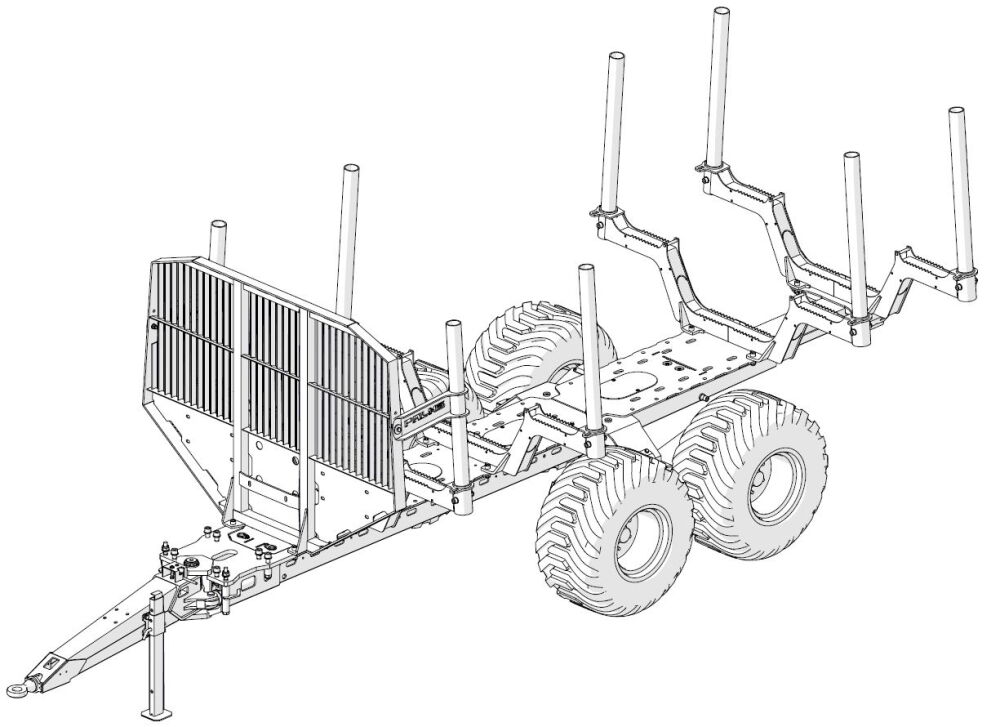

High-performance unibody trailer with 10 000 kg nominal loading capacity.
Loading area cross section, m2 | 2,4 |
Loading area length, mm | 3990 |
Frame extension length, m | 1,085 |
Gross weight, kg | 15000 |
Curb weight (without options) kg | 2170 |
Total length, mm | 6215 |
Width with standard wheels | 2245 |
Standard wheel size | 500/50-17 |
Frame | unibody |
Max crane size by lifting torque kNm | 120 |
Drawbar control cylinders standard/(optional), pcs | 2 |
Frame type | Unibody (Forwarder) |
Recommended cranes | PALMS 5.85 PALMS 7.75 |
See also | WHEELS - WH HYDRAULIC CYLINDER FOR FRAME EXTENSION - HEX 2WD ON REAR WHEELS - 2WDR |
