PALMS X100

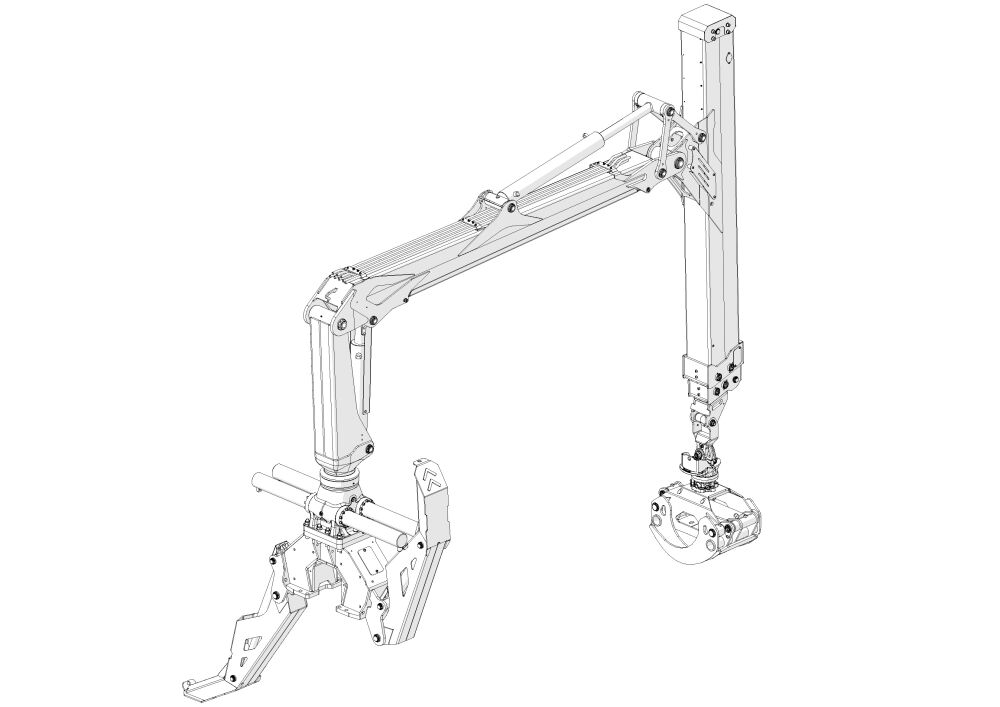

PALMS X100 offers the longest reach and highest lifting capacity among our product selection. Its double telescopic boom houses concealed hydraulic components, ensuring uninterrupted operation.

Specifications
Series X
Max outreach, m 10,1
Lifting capacity at full reach, 240 Bar, w/o grapple and rotator, kg 645
Lifting capacity at 4 m, 240 Bar, w/o grapple and rotator, kg 1930
Brutto lifting torque 240 Bar, kNm 106
Telescopic boom stroke length, m 4,2
Slewing cylinder amount in slewing housing, pcs 4
Slewing torque, kNm 30
Working pressure, bar 240
Rotator maximum load, kN 100
Crane weight without support leg and valve block, kg 1760
Pillar slewing angle, degrees 380
Recommended oil flow, L/min 120
