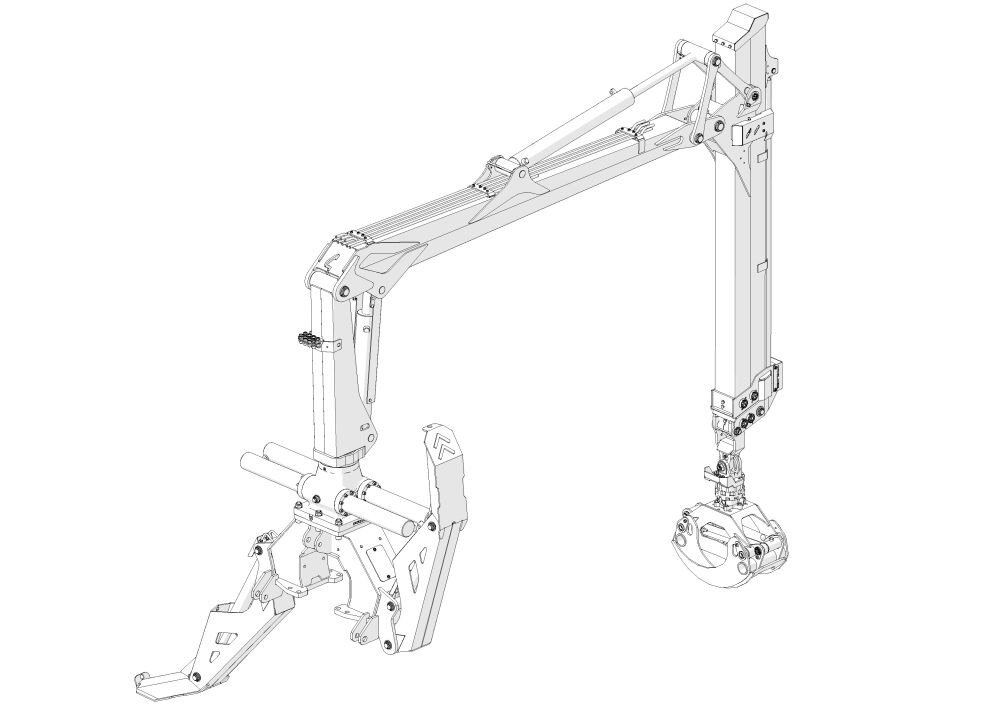

Heavy-duty forestry crane with double telescopic extension boom designed for daily professional forestry operations. Higher lifting capacity and slewing torque make it also suitable for working with chippers and harvester heads. Compatible with PALMS double beam and unibody trailers.
Series | 7 |
Max outreach, m | 9,4 |
Lifting capacity at full reach, 215 Bar, w/o grapple and rotator, kg | 540 |
Lifting capacity at 4m, 215 Bar, w/o grapple and rotator, kg | 1410 |
Brutto lifting torque 215 Bar, kNm | 83 |
Telescopic boom stroke length, m | 3,8 |
Slewing cylinder amount in slewing housing, pcs | 4 |
Slewing torque, kNm | 21 |
Working pressure, bar | 215 |
Rotator maximum load, kN | 60 |
Crane weight without support leg and valve block, kg | 1310 |
Pillar slewing angle, degrees | 380 |
Recommended oil flow, L/min | 60-120 |
