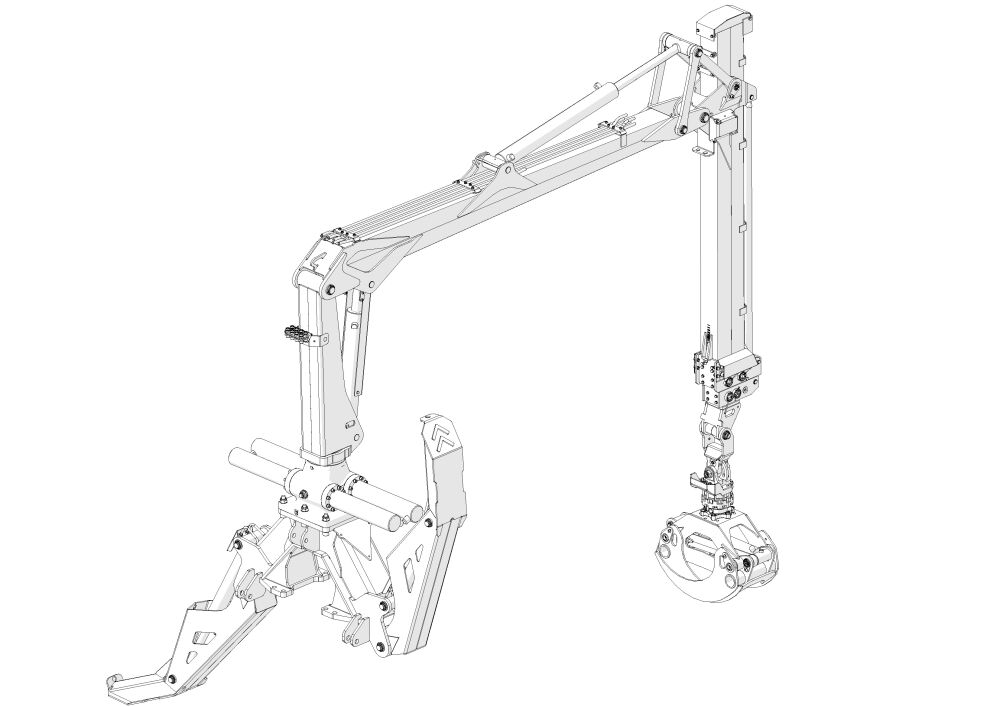

Professional forestry crane equipped with a double telescopic extension boom. Specifically designed for daily forestry operations on soft soil. It is optimized for use with medium-sized tractors and compatible with the majority of PALMS trailers.
Series | 5 |
Max outreach, m | 8,5 |
Lifting capacity at full reach, 215 Bar, w/o grapple and rotator, kg | 520 |
Lifting capacity at full reach, 190 Bar, w/o grapple and rotator, kg | 450 |
Lifting capacity at 4m, 215 Bar, w/o grapple and rotator, kg | 1220 |
Lifting capacity at 4m, 190 Bar, w/o grapple and rotator, kg | 1050 |
Brutto lifting torque 215 Bar, kNm | 63 |
Brutto lifting torque 190 bar, kNm | 56 |
Telescopic boom stroke length, m | 3,3 |
Slewing cylinder amount in slewing housing, pcs | 4 |
Slewing torque, kNm | 17 |
Working pressure, bar | 190/215 |
Rotator maximum load, kN | 60 |
Crane weight without support leg and valve block, kg | 900 |
Pillar slewing angle, degrees | 380 |
Recommended oil flow, L/min | 50-90 |
